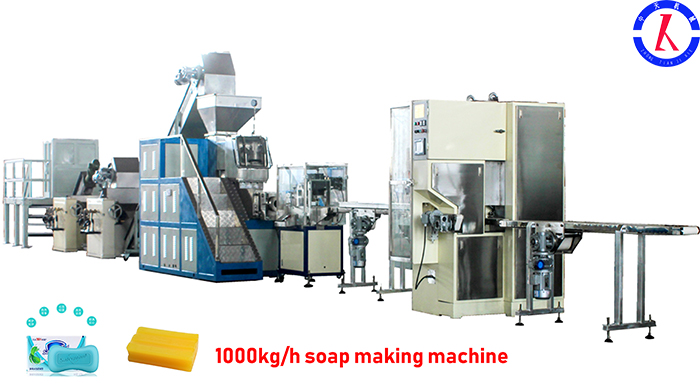

TOILET SOAP FINISHING LINE

 (CAPACITY：1000kg/H)

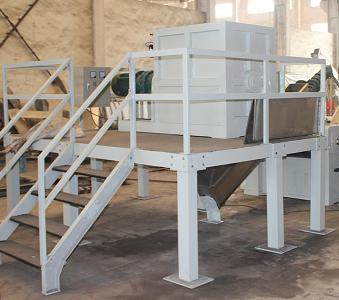

OPERATION PLATFORM

操作平臺

It is specially designed for amalgamator or mixer.

專用于攪拌機或捏合機。

The structure is made of steel frames with anti-slip plates for the stairs and operation platform.

鋼結構，踏步及操作臺均采用防滑花紋板制作。

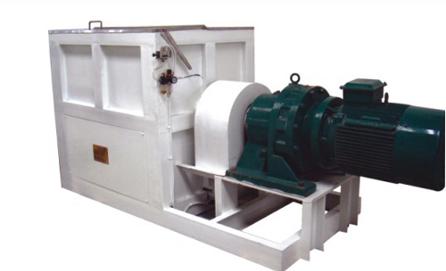

MIXER (CHJ-880)

混合機

One mixing shaft with two mixing paddles is driven by the motor through the gear box and rotating continuously to mix soap noodles, flakes are mixed with all kinds of liquid and solid ingredients inside the mixer chamber. After the mixing, products are discharged through air cylinder controlled discharging door. It can mix products well and even, dyes and ingredients fully blend into the noodles, meeting different customer requirements. All parts contact with soap adopt high quality stainless steel. One the top of it, the whole sealed stainless steel cover is installed to prevent the powder dust from discharging, as well as the safety door switch. The specially designed sigma can mix the soap noodle and any other ingredients intensively. It uses all-hard-teeth precisely-grinded motor-gear reducer. Secondary energy consumption energy-saving motors(national standards).

設備通過電機和減速箱，驅動攪拌軸勻速轉動，從而使固定在攪拌軸上的兩片攪拌葉在攪拌機筒體內充分混合皂粒、皂片與各種液體和固體添加劑。攪拌結束后，粉料通過下方的氣缸控制卸料門自動下料。攪拌效果充分、均勻，色漿、添加劑完全溶入皂基，滿足客戶不同配方要求。凡與皂料接觸部分全部采用優質不銹鋼制造。上口安裝全封閉不銹鋼蓋，防止粉塵外泄，并安裝安全門開關。獨特設計的攪拌漿能使皂粒和添加劑充分混合。采用全磨硬齒輪電機與減速機一體機。此設備已獲的CE認證，國際標準二級能耗節能電機。

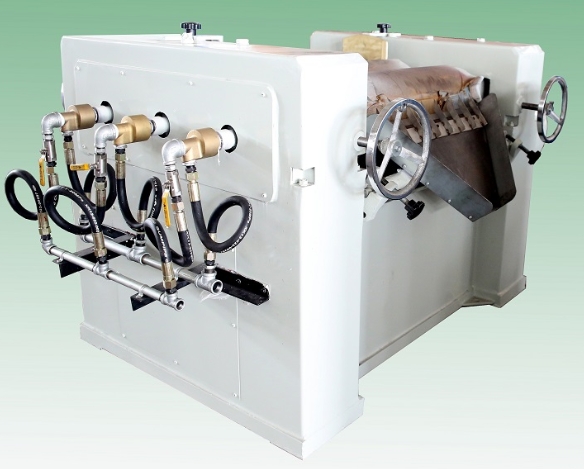

three roll Mill (s-405)

三輥研磨機

Description設備描述：

The Three Roll Mill is used for soap refining. Three rolls are horizontally placed with different rotating speeds. The refining function is achieved by pressing and squeezing force between the adjacent rolls. The main body is made of high quality stain structure, strong and solid. All gears are precisely manufactured and adopt oil bath lubrication to achieve long running life, low noise, less wearing and better reliability. Rolls are made of special alloy for super anti-wearing capability, and fitted with chilling system. Water pipe connector adopts rotating joint. Gap between rolls are adjusted easily to achieve different refining effects and production capacity needs. Secondary energy consumption energy-saving motors(national standards).

三輥研磨機主要用于皂粒研磨。三根輥筒水平方向排列，速度各不相同。皂粒在輥?zhàn)颖砻嫦嗷D壓和剪切，從而達到研磨作用。機身采用鋼結構，堅固結實，全套傳動齒輪精密加工，運行過程中采用浸油式潤滑，使用壽命長，噪音低，耐磨損，運行穩定可靠。輥筒表面選用冷硬合金材料，輥筒耐磨。水管接頭采用旋轉接頭，可壓力回水。輥筒之間的間隙調整方便，從而實現不同的研磨效果和產能需求。國際標準二級能耗節能電機。

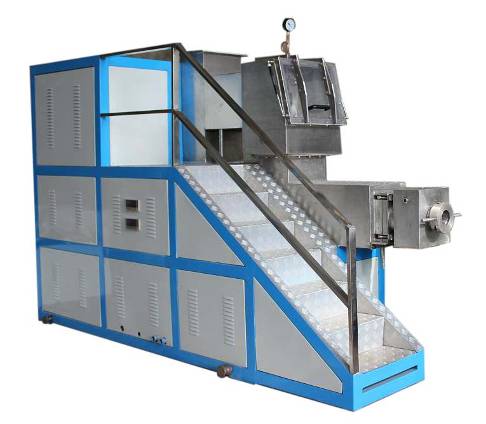

DUPLEX VACUUM PLODDER (SYJ-1000)

雙聯真空出條機
